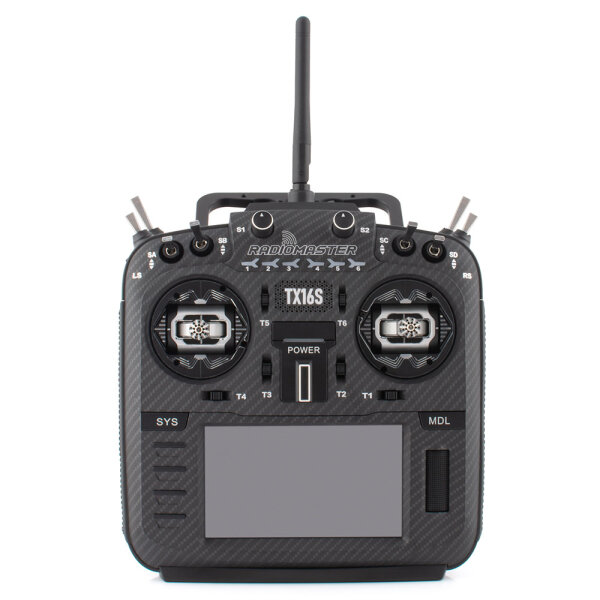

The best just got better! Introducing the TX16S Mark II, the ultimate open-source radio. We provide the standard TX16S Mark II radio, TX16S Mark II Max radio, TX16S Mark II Max Radio Controller (Joshua Bardwell Edition), and TX16S Mark II MAX Pro MCK Version.
Features
- Improved internal circuitry and optimized power supply.
- New charge circuitry with integrated reverse-polarity protection.
- Optimized charge IC now allows up to 2.2A internal USB-C charge current.
- Rear-mounted audio jack provided headphone output.
- V4.0 Gimbal improved centering and temperature stability (Same circuitry as AG01).
- Optional high/low rear grips are included for improved ergonomics.
- Improved S1/S2 knobs with clear center detents.
- Improved LS/RS Sliders with smoother feel and better center detents.
- Redesigned battery cover for improved battery access.
- Retooled body shell with improved fit and finish.
- Trainer socket changed to standard TRS 3.5mm socket.
- Rear DIY Socket added for personalized mods.
- Improved internal plastics for better longevity.
- Built-in ExpressLRS Backpack and 4in1 versions.
EU-LBT VERSION
"Listen Before you Talk" is the abbreviation for a technical feature in radio transmission, which is mandatory for operation within the EU. Therefore, all our remote controls are shipped with this firmware.
This means:
- 4in1 modules are limited to the LBT-enabled protocols FrSKY X/X2 LBT, HoTT LBT, and DSMX
- ELRS modules come pre-installed with EU-approved LBT firmware and are limited to a maximum output power of 100 MW
Battery Included!
On default we ship the radio with battery included. On request we take the battery out and deduct the relevant amount! Please contact us in case you whish to purchase without battery.
Specification
| Items |
TX16S Mark II Max |
| Size |
287x129x184mm |
| Weight |
750g (without battery) |
| Transmission frequency |
2.400GHz-2.480GHz |
| Transmitter module |
Option 1: Internal 4-in-1 multi-protocol module (CC2500 CYRF6936 A7105 NRF2401); Option 2: Internal ELRS (SX1280) |
| SD card |
256MB by default, 8GB maximum |
| Antenna gain |
2db (transmit power adjustable) |
| Working current |
400mA |
| Working voltage |
6.6-8.4v DC |
| Radio firmware |
EdgeTX |
| Module Firmware |
Multiprotocol- Module (4IN1) -OR- ExpressLRS (ELRS) |
| Channels |
Up to 16 channels (depending on the receiver) |
| Display |
4.3-inch TFT full-colour touch display with a resolution of 480 * 272 |
| Gimbal |
Option 1: V4.0 Hall sensor with Aluminium fascia; Option 2: AG01 CNC Hall sensor |
| Module Bay |
JR compatible module bay |
| Upgrade method |
Supports USB-C online / SD card offline upgrade |
| Support |
EdgeTX and OpenTX |
|
EdgeTX is installed by default (Touch screen enabled). |
|
* Requires EdgeTX version 2.6.0 or OpenTX version 2.3.15 or later. |
Available in 4in1 and ELRS versions
Here are the tips for you to choose 4in1 or ELRS, reviews by OscarLiang:
"If you can’t decide between ELRS and 4in1, I’d probably go for the ELRS version. It’s going to be the major RC protocol in the near future as it’s so powerful and affordable, with a wide range of tiny and inexpensive ELRS receivers available.
One reason to get the 4in1 is if you only want to use other protocols such as Frsky D8/D16, but these are kind of obsolete and slowly phasing out. Or if you are buying an external ELRS module for the radio, then it also makes sense to get the 4in1 as you don’t want to have another ELRS module onboard doing nothing."
Optional V4.0 Hall Gimbals and AG01 Gimbals
V4.0 HALL GIMBALS
Standard version with V4.0 Hall Gimbals, same chipset as the AG01, optimized hall sensor circuitry, improves center point positioning and temperature stability. Stick travel, self-centering and stick tension are now externally adjustable.
Flat & Raised Grips Included
Both the raised and flat versions of the rear grips are included allowing you to customize the feel of your TX16s MKII right out of the box.
Built-in dual speakers
External Module Bay
The TX16s natively supports Team Black Sheep MicroTX modules in CRSFmode with LUA scripts. Best of all the TX16s Internal 4-in-1 Multi-protocol module allows you to keep the MicroTX installed and switch between internal RF and Crossfire via software, no more module swapping.
Easy Firmware Updates
Upgraded Design
- Retooled faceplate with improved fit and finish
- Improved S1/S2 knobs with center detents
- 4.3” IPS Color Display - The TX16s features a bright and clear 4.3-inch IPS color display for easy and convenient model setup and operation with adjustable brightness to suit all conditions.
- New 3.5mm Audio jack - Rear mounted audio jack minimizes RF interference from external modules and adds a headphone audio feature.
- Redesigned battery cover, easier to remove.
- Rear DIY Socket added for personalized mods.
Package Includes
- 1 * TX16S Mark II Max Radio Controller
- 1 * 18650 Tray
- 1 * USB-C Cable
- 1 * Screen Protector
- 1 pair of flat grips
- 1 pair of raised grips (installed on radio by default)
- 1 * TX16S Key Chain
- 1 * 5000mAh Li-Ion Akku
